• Body, standard
• Alternator, 145 amps
• Battery, heavy-duty 770 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Rear wheel drive
• Frame, full-length box ladder-type
• Suspension, front independent with coil springs and stabilizer bar (Requires *G***05 models.)
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Incomplete vehicle certification

• Wheels, Gray-painted, includes chrome center caps and steel spare (Upgradeable to (PY2) 4-16" (40.6 cm) chrome-styled steel wheels on C*13405 models.)
• Tires, front P245/75R16 all-season, blackwall (Standard on **13405 models.)
• Tires, rear P245/75R16 all-season, blackwall (Standard on **13405 models.)
• Tire, spare P245/75R16 all-season, blackwall (Standard on **13405 models.)
• Door, swing-out passenger-side, 60/40 split
• Glass, fixed rear doors and side cargo doors
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Door, swing-out driver-side, 60/40 split (Requires C*13405 and CG23405 models.)
• Grille, chrome with dual composite halogen headlamps
• Bumpers, front and rear chrome with step-pad
• Mirrors, outside heated power-adjustable, Black, manual-folding
• Glass, swing-out rear cargo door windows
• Glass, swing-out rear side door and rear door window
• Wheel, full-size steel spare
• Trim, rear body-colored halo (replaces standard black panel located above rear tail lamps) (Not included when (41U) Black, (63U) Sport Red Metallic or (74U) Victory Red are ordered. These colors will receive a Black halo.)
• License plate kit, front
• Wipers, front intermittent wet-arm with pulse washers

• Audio system, AM/FM stereo with CD player, seek-and-scan, digital clock, TheftLock and random select Not available with (NP5) leather wrapped steering wheel)

• Seat, temporary driver, includes driver-and passenger-side safety belts and seat risers
• Air conditioning, single-zone manual (Includes quick connectors for rear air conditioning.)
• Door locks, power with lock-out protection
• Floor covering delete
• Steering wheel, steel sleeve column with theft-deterrent locking feature
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Windows, power
• Tow/haul mode selector, instrument panel-mounted
• Theft-deterrent system, vehicle, PASS-Key III
• Defogger, side windows
• Trim panels, front, side and rear doors
• Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side
• Assist handle, front passenger

• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch on models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Door beams, steel-side

ENGINE, VORTEC 5.3L V8 SFI

• (301 hp [224.4 kW] @ 5200 rpm
• 325 lb-ft of torque [438.8 N-m] @ 4500 rpm) (STD)

• 3.73 Axle Ratio
• Gray-Painted w/Chrome Center Caps Wheels
• Custom Vinyl Seat Trim
• Rear Air
• AM/FM Stereo w/CD Player
• Convenience Package
• Tilt & Cruise Convenience Package
• Power Door Locks w/Lock-Out Protection
• Auxiliary Rear Heater
• Front & Rear Chrome Bumpers w/Step-Pad
• 60/40 Split Swing-Out Driver Side Door
• Rear Body-Colored Halo Trim
• 145 Amp Alternator
• Outside Temperature Display
• Remote Keyless Entry
• Power Windows
• Cruise Control
• Dual Composite Halogen Headlamps
• Tilt Steering Wheel
• Chrome Grille
• Full Body Fixed Glass Window Package
• 7-Pin Sealed Connector Trailer Wiring
• 4-Wheel Disc Brakes
• 2 Speakers
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Power steering
• Passenger door bin
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• ABS brakes
• Voltmeter
• Tachometer
• Air Conditioning

• Vehicle
• Rear Door Type: Dual Swing-out
• Mileage
• EPA Fuel Economy Est - City (MPG): 12
• EPA Fuel Economy Est - Hwy (MPG): 16
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4000
• Curb Weight - Front (lbs): 2760
• Curb Weight - Rear (lbs): 2059
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 885
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.2
• Tires
• Front Tire Order Code: XNK
• Rear Tire Order Code: YNK
• Spare Tire Order Code: ZNK
• Front Tire Size: P245/75R16
• Rear Tire Size: P245/75R16
• Spare Tire Size: P245/75R16
• Front Tire Capacity (lbs): 1903
• Rear Tire Capacity (lbs): 2004
• Spare Tire Capacity (lbs): -TBD-
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x - TBD -
• Rear Wheel Size (in): 16 x - TBD -
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr-Assisted
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: LH Midship Inboard
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 81.6
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.7
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 7.6
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.1
• Step Up Height - Side (in): 20.9
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 127.8
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.7
• Cargo Box (Area) Height (in): 51.9
• Cargo Volume (ft³): 225.1
• Interior Dimensions
• Passenger Capacity: 1
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Summary

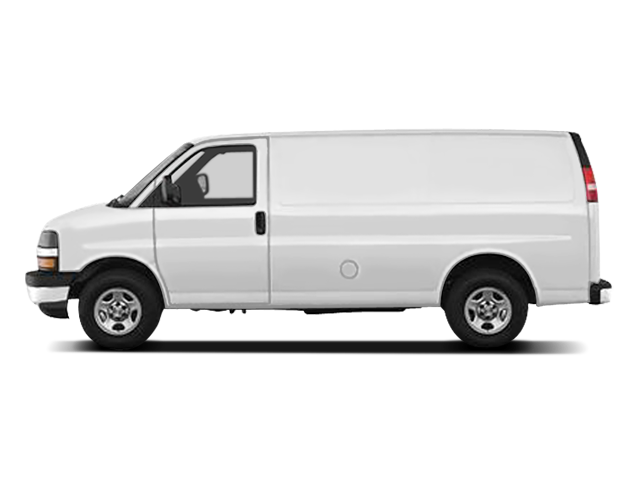

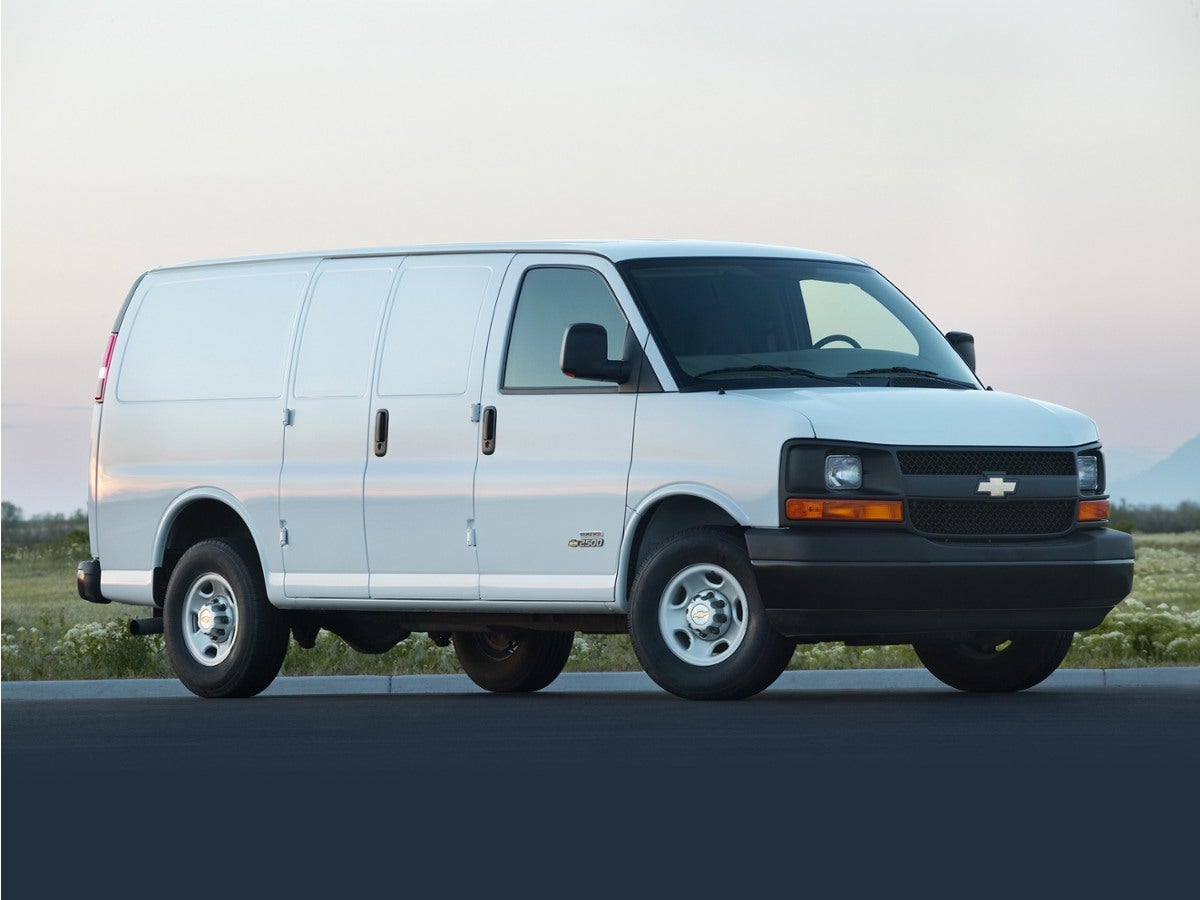

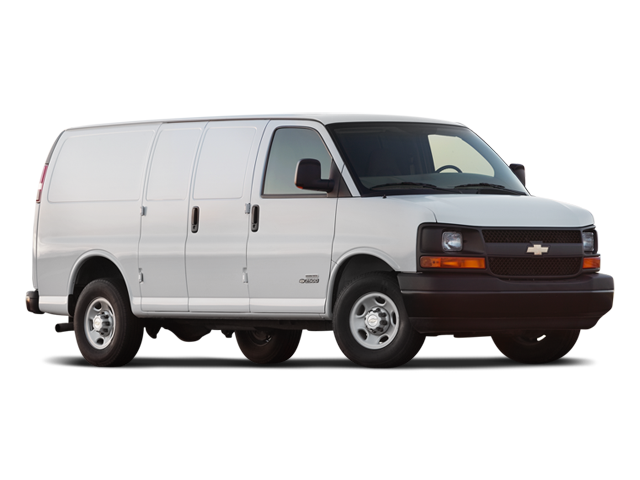

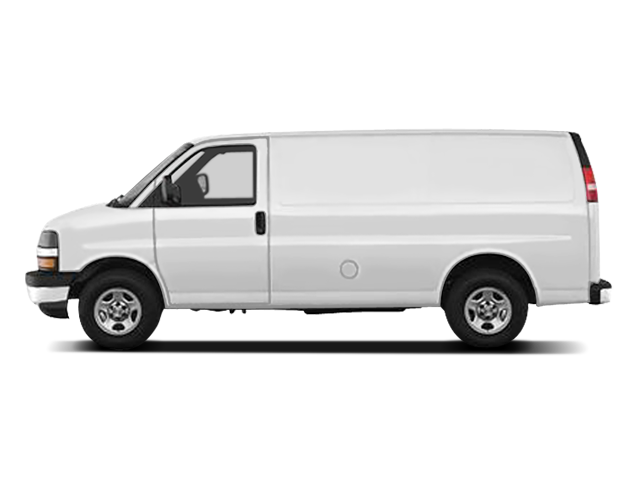

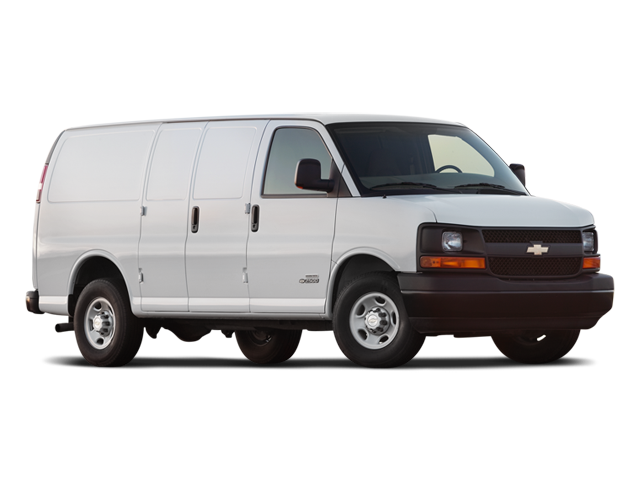

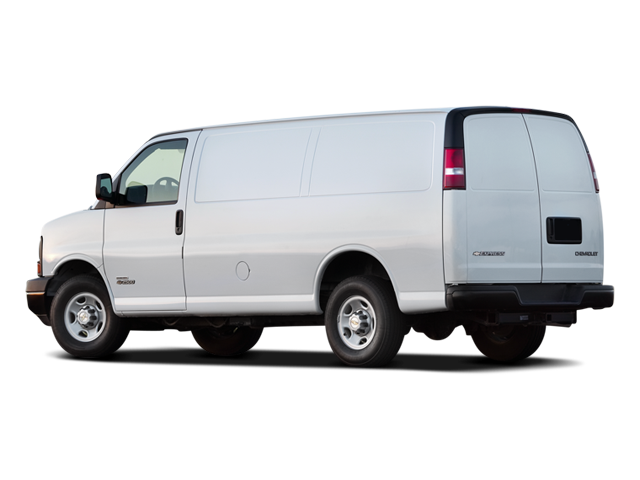

• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: 1500 Cargo Van 135" WB w/YF7
• Body Code: ZW9
